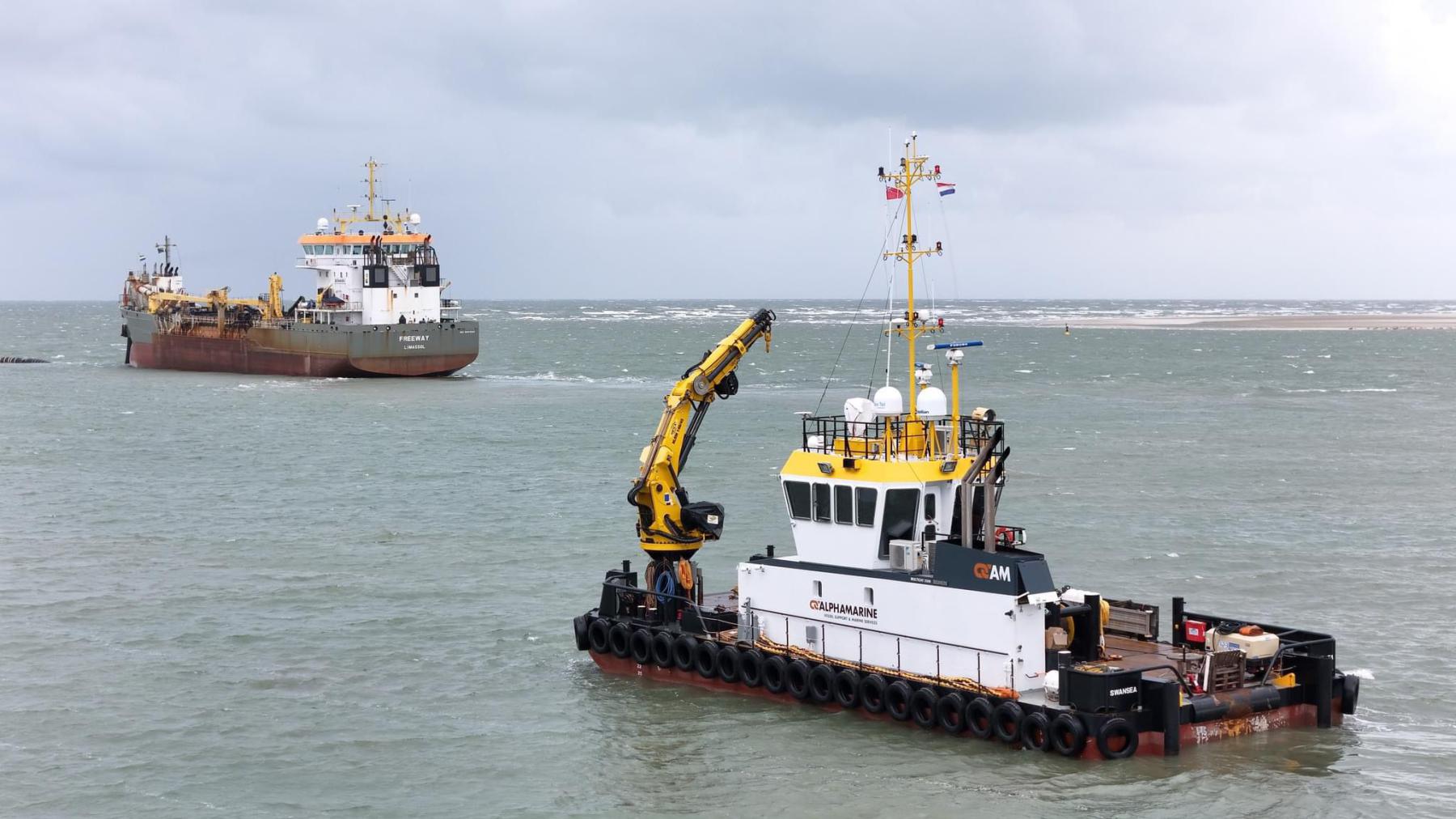

Multicat 2309 - AMS Retriever

AMS Retriever is a Multicat 2309, specially designed to work in shallow as well as in deeper waters. The AMS Retriever has a bollard pull of 16.2 tonnes, an operating draft of 2.00 meters and an increased stability for diverse worldwide operations.

The twin propelled Multicat 2309 has a multi-purpose design, the AMS Retriever is perfect for a wide-ranging scope of work, covering, but not limited to, anchor handling, anchor recovery, dredger service, supply, towing, dredge-hose handling, survey, pipe and cable laying, deck and/or cargo transportation.

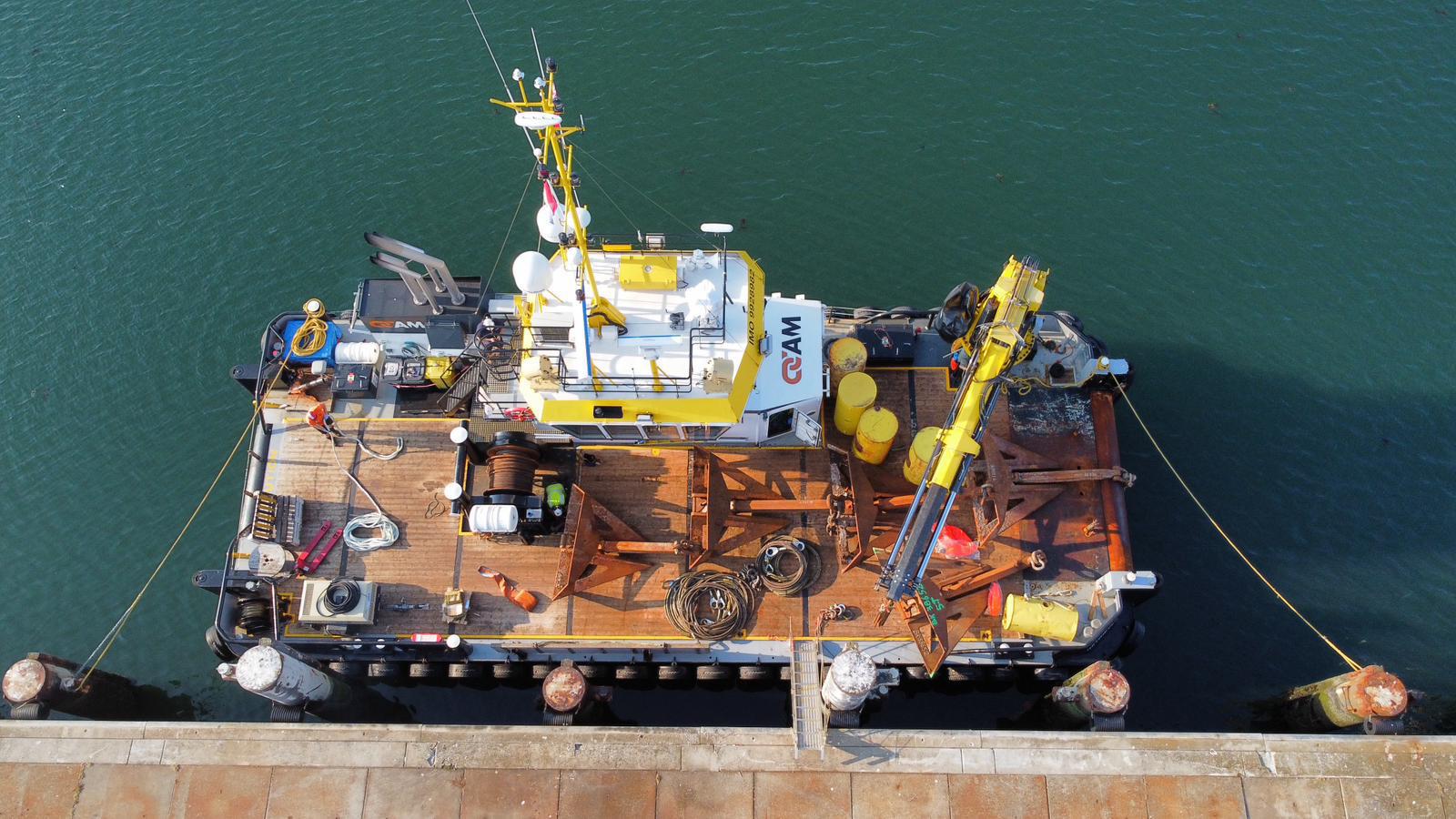

Manned with an experienced crew and equipped with the right quality gear for each job. AMS Retriever is fitted with a 15 tons A frame and a custom-made plough for dredging projects. A heavy Heila deck crane, a towing- and anchor handling winch and a spacious, obstacle free deck area of 98m2. The free deck space is ideal for placing equipment such as buoys, anchors or containers. The AMS Retriever has a 360-degree visibility. All to ensure the safety of the operations, whether towing or while performing anchor handling activities. Our vessels have a safe working environment for our crew.

Technical specifications Contact us

MULTICAT 2309 AMS Retriever

VESSEL SPECIFICATIONS

Type Multicat 2309
Classification Bureau Veritas • Hull • Mach • / Unrestricted Navigation / AUT-UMS (SS)
IMO number 9928982
Year built 2021 - Damen Hardinxveld, NL
Flag UK
Port of registry Swansea
Call sign MKKH9
MMSI 232039261
Length overall 23,33 m
Breath overall 9,55 m
Minimum draft 2,00 m
Operational Draft 2,00 m
Maximum draft 2,30 m
Gross tonnage 162 t
Net tonnage N/A t
System 2 x Slat Water Hydrants, NOVEC fixed fire suppression, Portable fire extinguishers
Type Water, NOVEC inert gas, Co2, Powder, Foam
Capacity N/A
Typel Heila HLRM 140-4SL
Capacity 8,1 t @ 14,10 m / 25,1 t @ 5,79m
Fuel oil 69,3 m³
Fresh water 48,0 m³
Lubricating oil N/A m³
Hydraulic oil N/A m³
Dirty oil 1,2 m³
Sewage 4,0 m³
Bilge water 2,2 m³
Main engines 2x Volvo Penta D16
Total power 956 bkW at 1800 rpm
Propulsion 2 x fixed pitch propellors
Bowthruster 1x Kalkman 90 ekW Electrical driven
Main generator sets 2x Volvo Penta D7 90 ekW, 50 Hz
Fuel oil transfer pump 1x Facet MV-11-AG, 1000 l/hr
Fresh water transfer pump 20m³ /h
Fresh water maker N/A
Air compressor Yes
Powerpack 2 x 55kw
Free deckspace 98,0 m²
Deck strength 10,0 t/m m²
Towing winch Single drum
Anchor Handling Winch 50 t / 62.5 t (pull/hold) max brake
Tugger winch 12 t swl
Towing pins N/A
Pushbow Full length rubber fendered
Stern roller BOW Roller SWL 52t
Bollard pull 16,2 t
Maximum speed 9,9
Economic speed 7,00
Horsepower 956 kW at 1800 rpm
Persons 7
Single cabin 3
Double cabin 2
Air conditioned Yes

The information is for guidance purposes only and may be subject to changes.

VIRTUAL TOUR

Click here to take a virtual tour on board of the AMS Retriever

PROVEN TRACK RECORD

The HST Hazel has a proven track record and has worked in areas with limited maneuverability. Contact our Commercial Department for any additional information you might need. HST Hazel is ready to support your project anywhere in the world in a diverse working environment.
